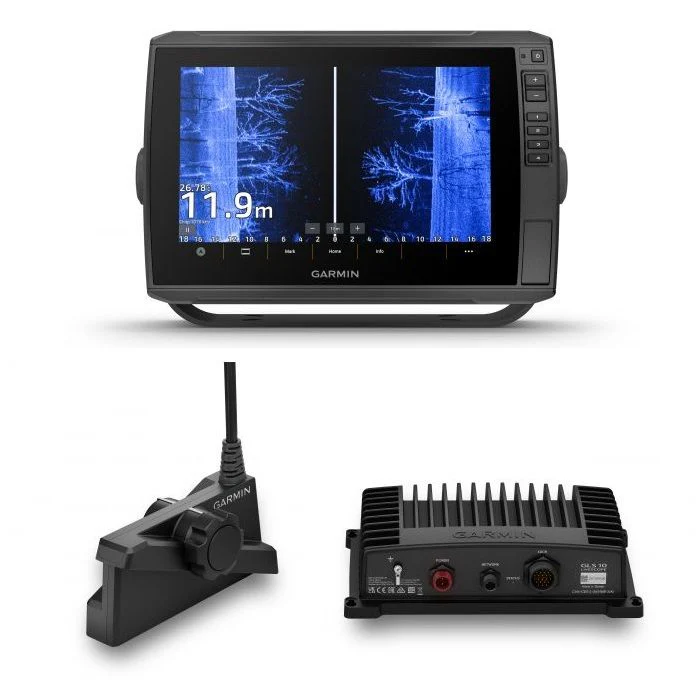

Garmin Echomap Ultra 2 102sv/122sv Livescope Plus Bundle With Gt56uhd-tm Transduce

Price range: $3,700 through $4,500

PWR & PRICE

Clear

SKU: N/A Categories: GARMIN, Livescope Bundles

Model: 010-02879-01/LIVESCOPE Plus

SUPPORTS LIVESCOPE™ SONAR1 AND MORE
WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES²
CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.

1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

Specifications

General
DIMENSION	11.6″” x 7.7″” x 3.9″” (29.5 x 19.5 x 9.8 cm)
WEIGHT	4.0 lbs (1.8 kg)
WATERPROOF	IPX7
TOUCHSCREEN	Yes
DISPLAY TYPE	WXGA, IPS
DISPLAY SIZE	8.5″” x 5.4″”; 10″” diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
DISPLAY RESOLUTION	1280 x 800 pixels
MOUNTING OPTIONS	Bail or flush
INPUT	Touchscreen with Keyed Assist
Maps & Memory
ACCEPTS DATA CARDS	2 microSD cards
WAYPOINTS	5000
TRACK POINTS	50,000
TRACKS	50 saved tracks
NAVIGATION ROUTES	100
Sensors
GPS	Yes
GLONASS	Yes
GALILEO	Yes
BEIDOU	Yes
HAS BUILT-IN RECEIVER	Yes
RECEIVER	10 Hz
NMEA 2000 COMPATIBLE	Yes
NMEA 0183 COMPATIBLE	Yes
SUPPORTS WAAS	Yes
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS	Yes
Built-in Maps
BUILT-IN AUTO GUIDANCE+	Yes
GARMIN NAVIONICS+ INLAND & COASTAL	No
TIDE TABLES	No
Optional Map Support
BLUECHART G3	Yes
BLUECHART G3 VISION	Yes
LAKEVü G3	Yes
LAKEVü G3 ULTRA	Yes
GARMIN NAVIONICS+™	Yes
GARMIN NAVIONICS VISION+™	Yes
TOPO 100K	Yes
STANDARD MAPPING	Yes
GARMIN QUICKDRAW CONTOURS	Yes
Electrical Features
POWER INPUT	9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC	2.3 A
MAXIMUM CURRENT DRAW AT 12 VDC	5.0 A
MAXIMUM POWER USAGE AT 10 VDC	34 W
Connections
NMEA 2000® PORTS	1
GARMIN MARINE NETWORK PORTS	2 (large connector)
12-PIN TRANSDUCER PORTS	12-pin scanning sonar
ANT+ (CONNECTIVITY)	Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION)	Yes
Sonar Features
DISPLAYS SONAR	Yes
POWER OUTPUT	600 watt
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVü	built-in 260/455/800/1000/1200 kHz
SIDEVü	built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR	Yes
LIVESCOPE	Yes
